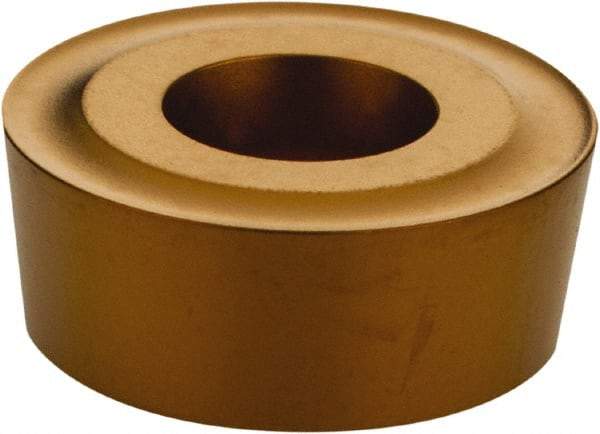

Seco - RCMM43 46 Grade 516 Carbide Turning Insert - Round, 1/2" Inscr Circle, 3/16" Thick
Item #: 56990922
Brand: Seco
Model #: 41264
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCMM |
| Insert Size | 43 |
| Material | Carbide |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Manufacturer's Grade | 516 |
| Material Grade | C6 |
| Chip Breaker | 46 |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Relief Angle | 7 |
| Insert Holding Method | Pin & Clamp |
| Shape | Round |
