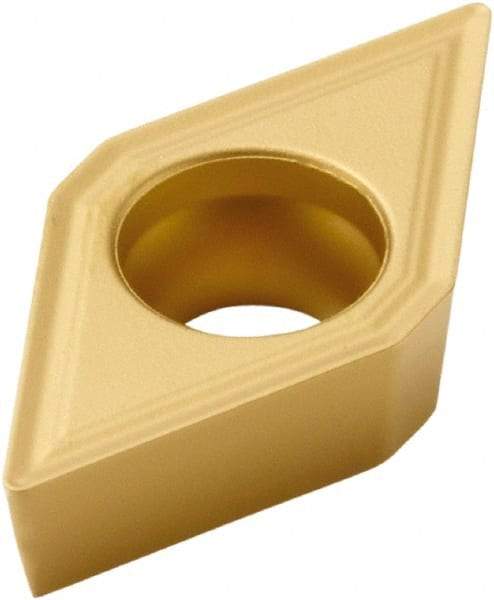

Seco - DCMT21.50.5 F2 Grade TP40 Carbide Turning Insert - TiC/TiCN/TiN Finish, 55° Diamond, 1/4" Inscr Circle, 3/32" Thick, 1/128" Corner Radius
Item #: 56983422
Brand: Seco
Model #: 19279
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DCMT |
| Insert Size | 21.50.5 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (Inch) | 1/128 |
| Corner Radius (Decimal Inch) | 0.0078 |
| Manufacturer's Grade | TP40 |
| Coating | TiC/TiCN/TiN |
| Chip Breaker | F2 |
| Hole Diameter (Decimal Inch) | 0.1140 |
| Relief Angle | 7 |
| Coating Process | CVD |
| Included Angle | 55 |
| Maximum Depth of Cut (Decimal Inch) | 0.2000 |
| Insert Holding Method | Screw |
| Shape | Diamond |
