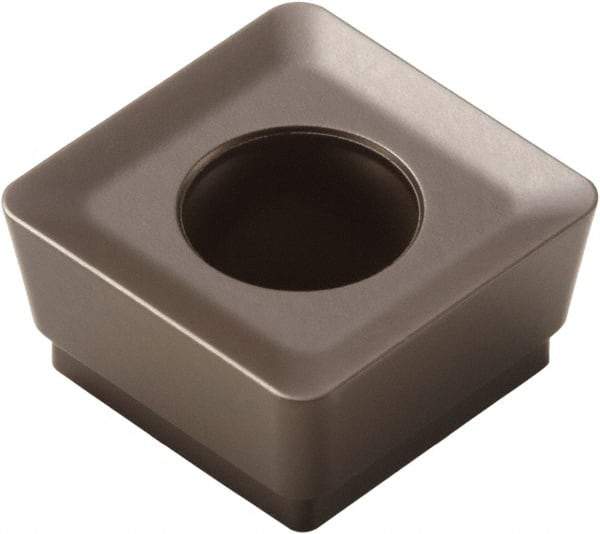

Seco - SCMT120612 M14 Grade T350M Carbide Milling Insert - TiCN/Al2O3 Finish, 1/4" Thick, 1/2" Inscribed Circle, 0.047" Corner Radius
Item #: 56973522
Brand: Seco
Model #: 16991
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SCMT |
| Insert Size | 120612 |
| Material | Carbide |
| Manufacturer's Grade | T350M |
| Coating | TiCN/Al2O3 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Relief Angle | 7.000 |
| Rake Angle | 15 |
| Rake | Positive |
| Coating Process | CVD |
| Included Angle | 90 |
| Shape | Square |
| Chipbreaker | M14 |
| ISO Number | SCMT 120612T-M14 |
