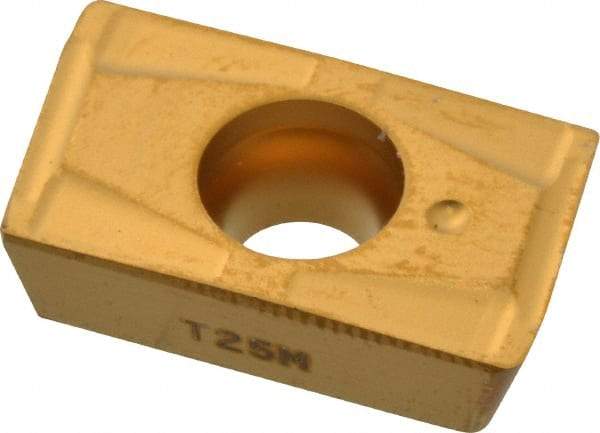

Seco - APFT1604 D15 Grade T25M Carbide Milling Insert - TiCN/TiC/TiCN/TiN Finish, 0.187" Thick, 0.031" Corner Radius
Item #: 56971229
Brand: Seco
Model #: 04967
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | APFT |
| Insert Size | 1604 |
| Material | Carbide |
| Material Grade | C5 |
| Manufacturer's Grade | T25M |
| Coating | TiCN/TiC/TiCN/TiN |
| Width (Decimal Inch) | 0.3750 |
| Length (Decimal Inch) | 0.6690 |
| Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Relief Angle | 11.000 |
| Rake Angle | 8 |
| Coating Process | CVD |
| Included Angle | 85 |
| Shape | Parallelogram |
| Insert Hand | Left Hand |
| Chipbreaker | D15 |
| ISO Number | APFT1604PDTL-D15 |
