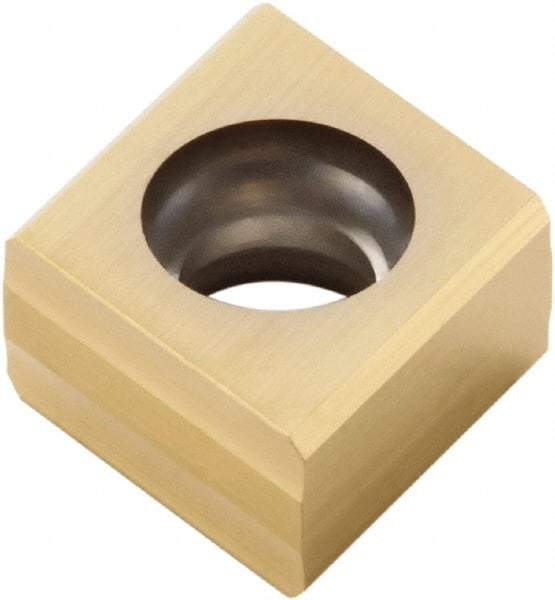

Seco - 335.181305 M11 Grade T25M Carbide Milling Insert - TiCN/TiC/TiCN/TiN Finish, 0.213" Thick, 0.394" Inscribed Circle
Item #: 56967987
Brand: Seco
Model #: 16406
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 335.18 |
| Insert Size | 1305 |
| Material | Carbide |
| Manufacturer's Grade | T25M |
| Coating | TiCN/TiC/TiCN/TiN |
| Length (Decimal Inch) | 0.5000 |
| Inscribed Circle (Decimal Inch) | 0.3940 |
| Thickness (Decimal Inch) | 0.2130 |
| Rake Angle | 10 |
| Rake | Positive |
| Coating Process | CVD |
| Shape | Diamond |
| Chipbreaker | M11 |
| ISO Number | 335.18-1305T-M11 |
