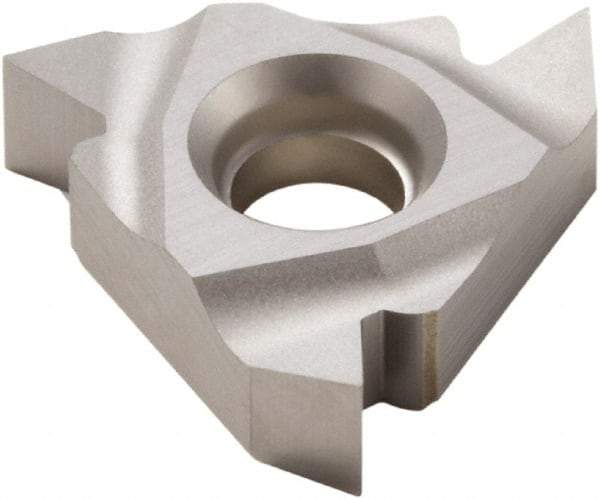

Seco - 16NR Internal Right Hand 48-8 Partial Profile 60° Laydown Threading Insert - Grade H15, Uncoated Coated Carbide, 9.53mm Inscribed Circle
Item #: 56960347
Brand: Seco
Model #: 27528
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 16NR |
| Insert Hand | Right Hand |
| Thread Type | Internal |
| Thread Standard | Partial Profile 60 |
| Manufacturer's Grade | H15 |
| Threads Per Inch | 48-8 |
| Pitch (mm) | 0.50-3.00 |
| Inscribed Circle (mm) | 9.53 |
| Inscribed Circle (Decimal Inch) | 0.3752 |
| Thickness (Decimal Inch) | 0.1366 |
| Thickness (mm) | 3.47 |
| Coating | Uncoated |
| Corner Radius (Decimal Inch) | 0.0800 |
