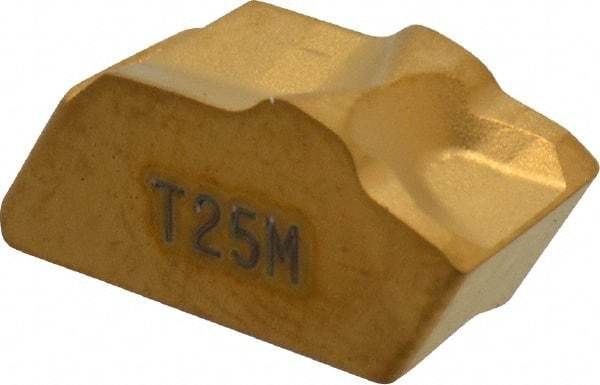

Seco - 150.105 16 T25M Grade, 0.2" Cutting Width, Carbide Cutoff Insert - 6° Right Hand Lead Angle, 0.01" Cnr Rad, TiC/TiCN/TiN Coated, Single End
Item #: 56945363
Brand: Seco
Model #: 16524
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 150.10 |
| Insert Size | 5 |
| Lead Angle Direction | Right Hand |
| Lead Angle | 6 |
| Cutting Width (Decimal Inch) | 0.2000 |
| Material Grade | C5 |
| Manufacturer's Grade | T25M |
| Coating | TiC/TiCN/TiN |
| Series | 150.10 |
| Relief Angle | 6 |
| Chipbreaker | 16 |
| Coating Process | CVD |
| Overall Length (Decimal Inch) | 0.3540 |
| Corner Radius (Decimal Inch) | 0.0100 |
| Insert Holding Method | Clamp |
| Width Tolerance | ±0.003 |
