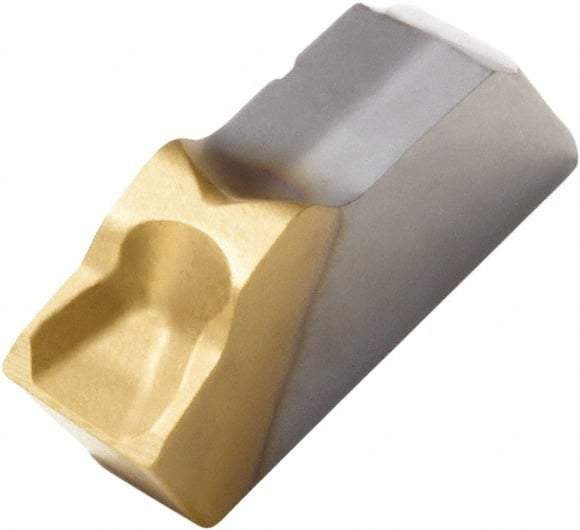

Seco - 150.1016 16 T25M Grade, 0.2" Cutting Width, Carbide Cutoff Insert - 6° Left Hand Lead Angle, 0.01" Cnr Rad, TiCN Coated, Single End
Item #: 56945165
Brand: Seco
Model #: 16533
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 150.10 |
| Insert Size | 16 |
| Lead Angle Direction | Left Hand |
| Lead Angle | 6 |
| Cutting Width (mm) | 5.08 |
| Cutting Width (Decimal Inch) | 0.2000 |
| Material Grade | C5 |
| Manufacturer's Grade | T25M |
| Coating | TiCN |
| Series | 150.10 |
| Chipbreaker | 16 |
| Coating Process | CVD |
| Overall Length (mm) | 8.99 |
| Overall Length (Decimal Inch) | 0.3540 |
| Corner Radius (Decimal Inch) | 0.0100 |
| Corner Radius (mm) | 0.25 |
| Insert Holding Method | Clamp |
| Insert Seat Size | 5 |
