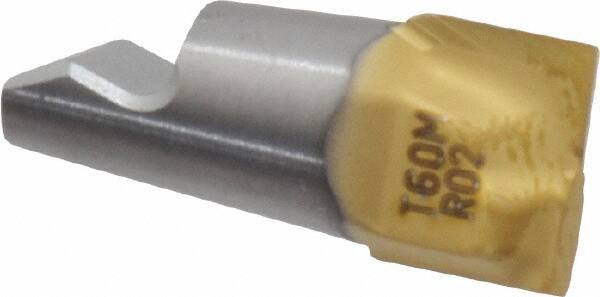

Seco - MM08 D03 Grade T60M Carbide Keyway Milling Tip Insert - TiAlN/TiN Finish, 2 Flutes, 0.307" Cutting Diam, 0.216" Depth of Cut, 0.267" Extension, 0.008" Cnr Rad
Item #: 56931009
Brand: Seco
Model #: 34244
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiAlN/TiN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
| Product Specifications | |
|---|---|
| Series | Minimaster |
| Milling Tip Style | MM08 |
| Milling Tip Type | Keyway |
| Material | Carbide |
| Cutting Diameter (Decimal Inch) | 0.3070 |
| Material Grade | C5 |
| Manufacturer's Grade | T60M |
| Depth of Cut (Decimal Inch) | 0.2160 |
| Number of Flutes | 2 |
| Coating | TiAlN/TiN |
| Milling Tip Full Description | Keyway |
| Corner Radius (Decimal Inch) | 0.0080 |
| Coating Process | PVD |
| Chipbreaker | D03 |
| Extension From Holder (Decimal Inch) | 0.2670 |
