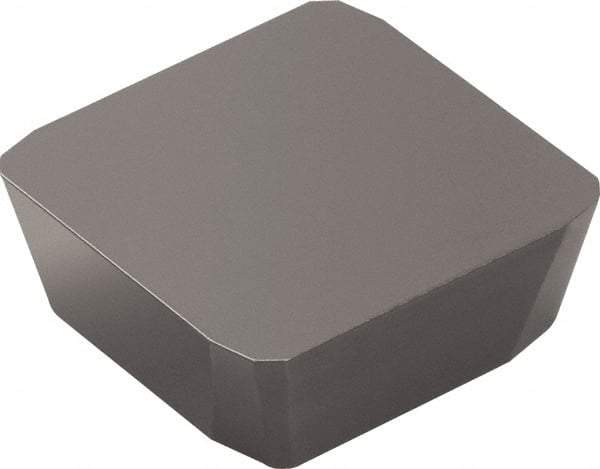

Sandvik Coromant - SMK42 Grade HM Carbide Milling Insert - Uncoated, 3.17mm Thick, 12.7mm Inscribed Circle
Item #: 56614944
Brand: Sandvik Coromant
Model #: 5750777
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SMK |
| Insert Size | 42 |
| Material | Carbide |
| Manufacturer's Grade | HM |
| Coating | Uncoated |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (mm) | 3.17 |
| Thickness (Decimal Inch) | 0.1250 |
| Relief Angle | 11.000 |
| Rake Angle | 0 |
| Rake | Neutral |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Left Hand |
| Maximum Depth of Cut (mm) | 9.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3543 |
| Cutting Edge Style | Sharp |
| ISO Number | SPKN 12 03 ED L HM |
