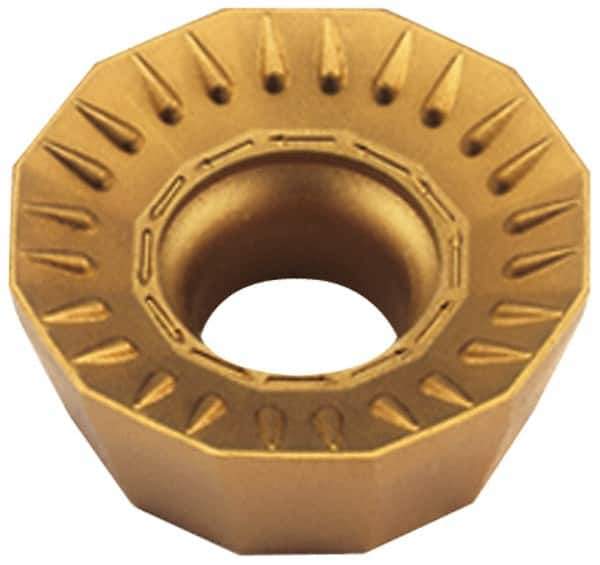

LMT - XCKX1606 TR Grade LC240T Carbide Milling Insert - TiAlN/TiN Finish, 1/4" Thick, 16mm Inscribed Circle, 0.5mm Corner Radius
Item #: 56445620
Brand: LMT
Model #: 60724
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XCKX |
| Insert Size | 1606 |
| Material | Carbide |
| Material Grade | C5/C6 |
| Manufacturer's Grade | LC240T |
| Coating | TiAlN/TiN |
| Length (Decimal Inch) | 0.6299 |
| Inscribed Circle (mm) | 16.00 |
| Inscribed Circle (Decimal Inch) | 0.6299 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Decimal Inch) | 0.0197 |
| Corner Radius (mm) | 0.50 |
| Hole Diameter (mm) | 5.80 |
| Hole Diameter (Decimal Inch) | 0.2283 |
| Relief Angle | 7.000 |
| Rake Angle | 25 |
| Coating Process | PVD |
| Insert Hand | Right Hand |
| Chipbreaker | TR |
| ISO Number | XCKX1606ZDR-TR |
