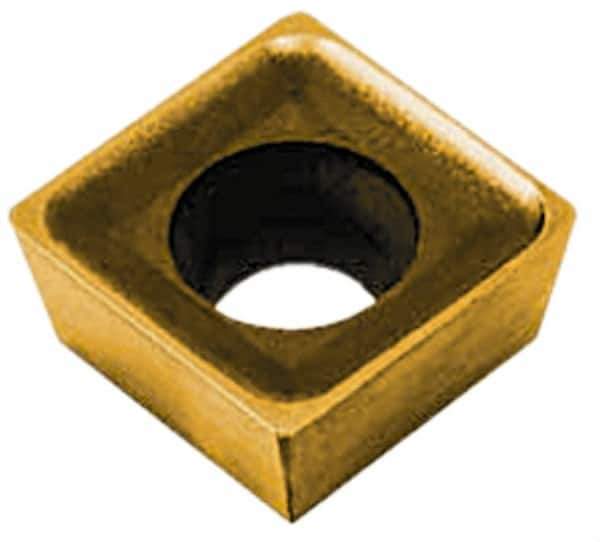

LMT - SNKX1205 TR Grade LC610T Carbide Milling Insert - TiAlN/TiN Finish, 0.2189" Thick, 1/2" Inscribed Circle, 2mm Corner Radius
Item #: 56445406
Brand: LMT
Model #: 60048
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNKX |
| Insert Size | 1205 |
| Material | Carbide |
| Material Grade | C2/C3 |
| Manufacturer's Grade | LC610T |
| Coating | TiAlN/TiN |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.2189 |
| Corner Radius (Decimal Inch) | 0.0787 |
| Corner Radius (mm) | 2.00 |
| Hole Diameter (mm) | 5.20 |
| Hole Diameter (Decimal Inch) | 0.2047 |
| Relief Angle | 0.000 |
| Rake Angle | 45 |
| Coating Process | PVD |
| Included Angle | 30 |
| Shape | Square |
| Chipbreaker | TR |
| ISO Number | SNKX 1205 AN-TR |
