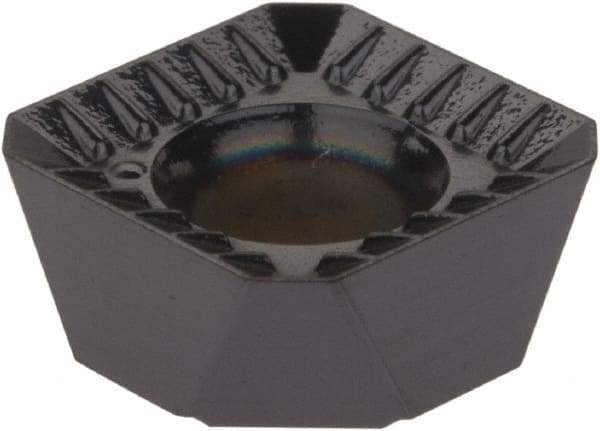

LMT - SNHX1205 Grade LC430T Carbide Milling Insert - TiAlN/TiN Finish, 0.2189" Thick, 1/2" Inscribed Circle, 2mm Corner Radius
Item #: 56445018
Brand: LMT
Model #: 50948
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNHX |
| Insert Size | 1205 |
| Material | Carbide |
| Material Grade | C5 |
| Manufacturer's Grade | LC430T |
| Coating | TiAlN/TiN |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.2189 |
| Corner Radius (Decimal Inch) | 0.0787 |
| Corner Radius (mm) | 2.00 |
| Hole Diameter (mm) | 5.20 |
| Hole Diameter (Decimal Inch) | 0.2047 |
| Relief Angle | 0.000 |
| Rake Angle | 45 |
| Coating Process | PVD |
| Included Angle | 30 |
| Shape | Square |
| ISO Number | SNHX 1205 AE-IN |
