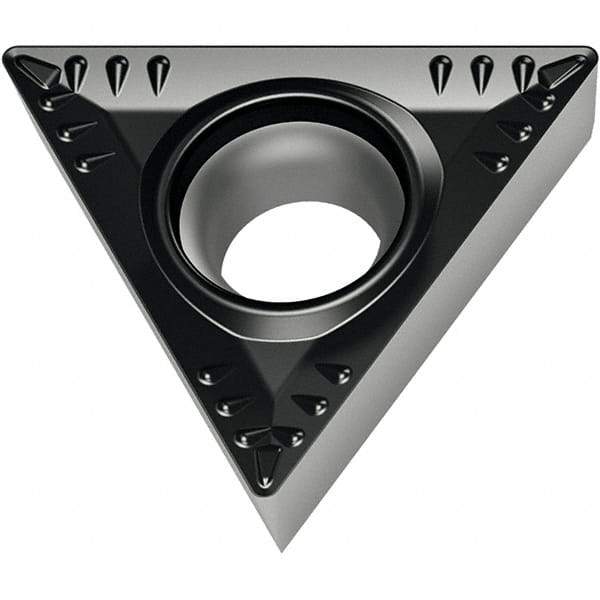

Walter - TCMT1.81.52 RP4 Grade WPP10S Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 60° Triangle, 7/32" Inscr Circle, 3/32" Thick, 1/32" Corner Radius
Item #: 56351141
Brand: Walter
Model #: 6448650
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TCMT |
| Insert Size | 1.81.52 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.2188 |
| Inscribed Circle (Inch) | 7/32 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | WPP10S |
| Coating | TiCN/Al2O3/TiN |
| Material Grade | P10/K20 |
| Chip Breaker | RP4 |
| ISO Number | TCMT090208-RP4 |
| Rake | Positive |
| Relief Angle | 7 |
| Coating Process | CVD |
| Manufacturers Catalog Number | TCMT090208-RP4 |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | K |
| Included Angle | 60 |
| Series | Tiger-tec Silver |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Insert Holding Method | Screw |
| Multi Use Application | Turning |
| MultiUseTool | Yes |
| Shape | Triangle |
