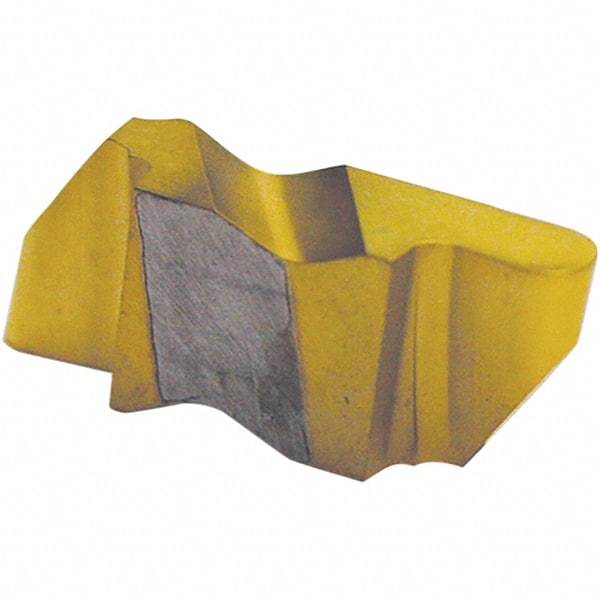

Tool-Flo - 2031FLR Grade AC50, 1.57mm Cutting Width Carbide Grooving Insert - 2.79mm Max Depth of Cut, Left Hand, 0.79mm Corner Radius, TiAlN Finish
Item #: 56345242
Brand: Tool-Flo
Model #: 592031LAC50C
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | FLR |
| Insert Size | 2031 |
| Material | Carbide |
| Cutting Width (mm) | 1.57 |
| Cutting Width (Decimal Inch) | 0.0620 |
| Maximum Depth of Cut (mm) | 2.79 |
| Maximum Depth of Cut (Decimal Inch) | 0.1100 |
| Manufacturer's Grade | AC50 |
| Coating | TiAlN |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Cutting Height (Decimal Inch) | 0.2190 |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.79 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Coating Process | PVD |
| Series | Flo-Lock |
| Manufacturers Catalog Number | FLR-2031L |
| Insert Thickness (Decimal Inch) | 0.1500 |
