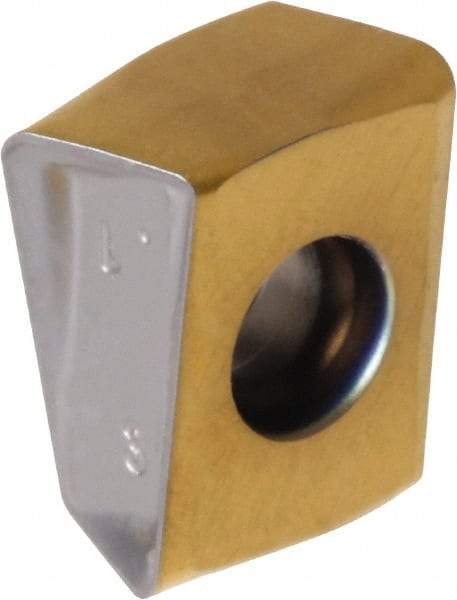

Iscar - T490 LNMT080408 PNR Grade IC810 Carbide Milling Insert - AlTiN/TiN Finish, 0.2925" Thick, 0.8mm Corner Radius
Item #: 56330491
Brand: Iscar
Model #: 5607680
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | T490 LNMT |
| Insert Size | 080408 |
| Material | Carbide |
| Manufacturer's Grade | IC810 |
| Coating | AlTiN/TiN |
| Width (Decimal Inch) | 0.1669 |
| Length (Decimal Inch) | 0.3382 |
| Thickness (Decimal Inch) | 0.2925 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Coating Process | PVD |
| Shape | Rectangle |
| Chipbreaker | PNR |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Manufacturers Catalog Number | T490 LNMT 080408PNR |
