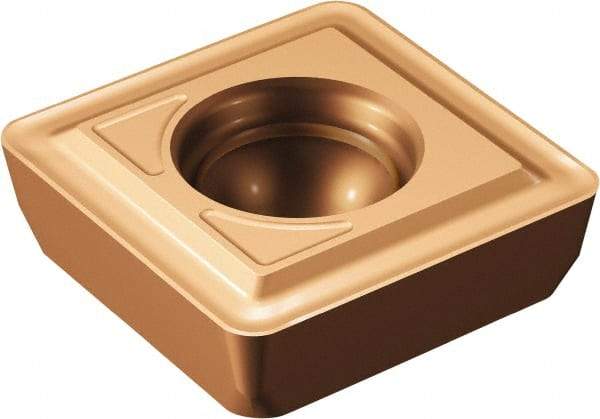

Sandvik Coromant - 88008P MS Grade 2044 Carbide Indexable Drill Insert - TiAlN/AlCr2O3 Finish, Square, 15.45mm Inscribed Circle
Item #: 56085418
Brand: Sandvik Coromant
Model #: 6227414
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 880 |
| Insert Size | 08P |
| Material | Carbide |
| Manufacturer's Grade | 2044 |
| Inscribed Circle (mm) | 15.45 |
| Inscribed Circle (Decimal Inch) | 0.6083 |
| Thickness (mm) | 4.50 |
| Thickness (Decimal Inch) | 0.1772 |
| Corner Radius (mm) | 1.00 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Shape | Square |
| Width (Decimal Inch) | 0.6083 |
| Width (mm) | 15.45 |
| Length (mm) | 15.45 |
| Length (Decimal Inch) | 0.6083 |
| Hole Diameter (mm) | 4.70 |
| Hole Diameter (Decimal Inch) | 0.1850 |
| Coating | TiAlN/AlCr2O3 |
| Coating Process | PVD |
| Cutting Direction | Right Hand |
| Chipbreaker | MS |
