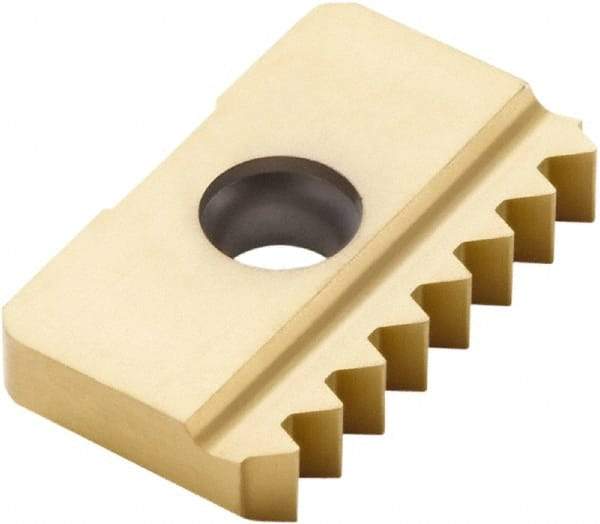

Seco - 24 TPI, Internal Thread, UN Standard, 13NMS CP500 Grade Thread Mill Insert - Carbide, TiAlN/TiN Coating
Item #: 56023997
Brand: Seco
Model #: 19898
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiAlN/TiN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
| Product Specifications | |
|---|---|
| Insert Style | 13NMS |
| Thread Type | Internal |
| Thread Standard | UN |
| Threads Per Inch | 24 |
| Length (mm) | 13.0048 |
| Length (Decimal Inch) | 0.5120 |
| Material Grade | Micrograin |
| Manufacturer's Grade | CP500 |
| Material | Carbide |
| Coating | TiAlN/TiN |
| Coating Process | PVD |
| Thickness (mm) | 2.49 |
| Thickness (Decimal Inch) | 0.0980 |
| Width (Decimal Inch) | 0.2760 |
| Width (mm) | 7.01 |
| Conical | No |
