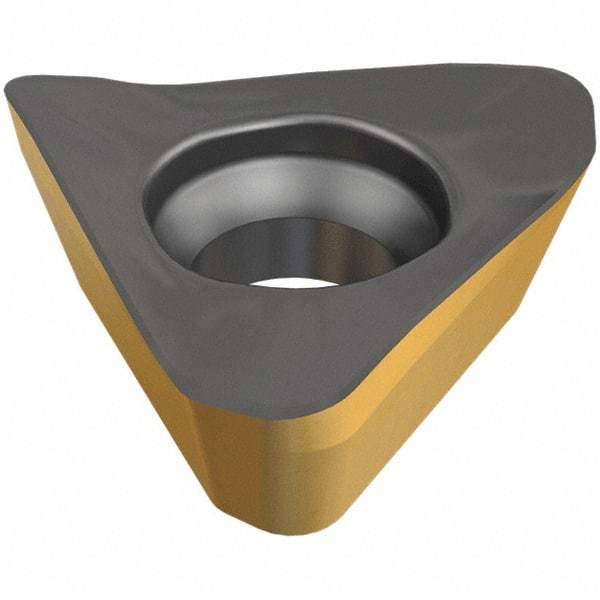

Iscar - HM390 TPCR1003 P Grade IC28 Carbide Milling Insert - Uncoated, 4mm Thick, 7.5mm Inscribed Circle, 0.8mm Corner Radius
Item #: 55908529
Brand: Iscar
Model #: 5607518
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HM390 TPCR |
| Insert Size | 1003 |
| Material | Carbide |
| Manufacturer's Grade | IC28 |
| Coating | Uncoated |
| Length (mm) | 10.90 |
| Length (Decimal Inch) | 0.4290 |
| Inscribed Circle (mm) | 7.50 |
| Inscribed Circle (Decimal Inch) | 0.2950 |
| Thickness (mm) | 4.00 |
| Thickness (Decimal Inch) | 0.1570 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.80 |
| Shape | Triangle |
| Insert Hand | Right Hand |
| Chipbreaker | P |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Cutting Edge Style | Helical |
| Manufacturers Catalog Number | HM390 TPCR1003PDFR-P |
| ISO Number | HM390 TPCR1003PDFR-P |
| ANSI Number | HM390 TPCR1003PDFR-P |
