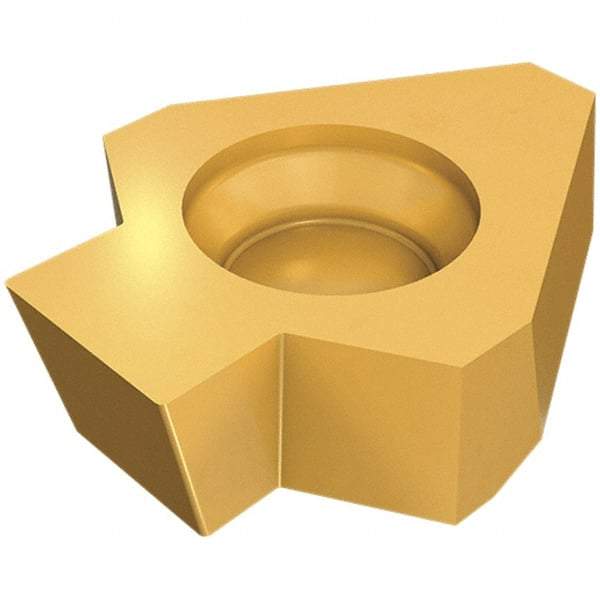

Iscar - 13-6.12-0.85XNUWB 13 Grade IC908, 6.12mm Cutting Width Carbide Grooving Insert - 2.6mm Max Depth of Cut, 0.85mm Corner Radius, TiAlN Finish
Item #: 55750517
Brand: Iscar
Model #: 6405297
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XNUWB 13 |
| Insert Size | 13-6.12-0.85 |
| Material | Carbide |
| Cutting Width (mm) | 6.12 |
| Cutting Width (Decimal Inch) | 0.2410 |
| Maximum Depth of Cut (mm) | 2.60 |
| Maximum Depth of Cut (Decimal Inch) | 0.1020 |
| Material Grade | Fine-grained |
| Manufacturer's Grade | IC908 |
| Coating | TiAlN |
| Relief Angle | 5 |
| Multi-Use Application | Grooving; Parting; Turning |
| Maximum Corner Radius (Decimal Inch) | 0.0330 |
| Corner Radius (mm) | 0.85 |
| Corner Radius (Decimal Inch) | 0.0330 |
| Coating Process | PVD |
| Overall Length (mm) | 17.30 |
| Overall Length (Decimal Inch) | 0.6810 |
| Series | IscarBroach |
| ISO Number | XNUWB 13-6.12-0.85 IC908 |
| Manufacturers Catalog Number | 6405297 |
| Insert Thickness (mm) | 5.3000 |
