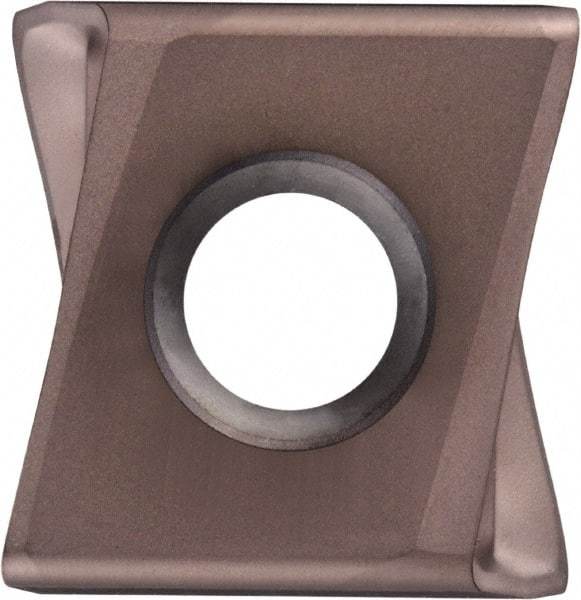

Sumitomo - LNEX130616 G Grade ACM200 Carbide Milling Insert - Al2O3/TiCN Finish, 6.4mm Thick, 0.06mm Corner Radius
Item #: 55729040
Brand: Sumitomo
Model #: 1P4V017
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LNEX |
| Insert Size | 130616 |
| Material | Carbide |
| Material Grade | M20 |
| Manufacturer's Grade | ACM200 |
| Coating | Al2O3/TiCN |
| Width (mm) | 13.00 |
| Length (mm) | 12.60 |
| Thickness (mm) | 6.40 |
| Corner Radius (mm) | 0.06 |
| Rake Angle | -6 |
| Rake | Negative |
| Coating Process | CVD |
| Shape | Rectangle |
| Insert Hand | Right Hand |
| Chipbreaker | G |
| Maximum Depth of Cut (mm) | 12.00 |
| Cutter Series Compatibility | TSX |
