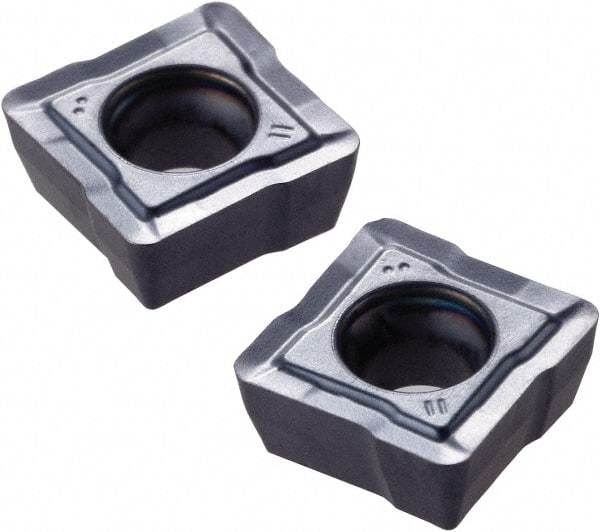

OSG - XCMT094008 DM Grade XP9020 Carbide Indexable Drill Insert - TiAlN Finish, Square, 25/64" Inscribed Circle
Item #: 55705131
Brand: OSG
Model #: 7823069
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Insert Style | XCMT |
| Insert Size | 094008 |
| Material | Carbide |
| Manufacturer's Grade | XP9020 |
| Inscribed Circle (Inch) | 25/64 |
| Thickness (mm) | 4.00 |
| Corner Radius (mm) | 0.80 |
| Shape | Square |
| Width (mm) | 10.04 |
| Relief Angle | 8 |
| Included Angle | 180 |
| Coating | TiAlN |
| Coating Process | PVD |
| Cutting Direction | Right Hand |
| Chipbreaker | DM |
