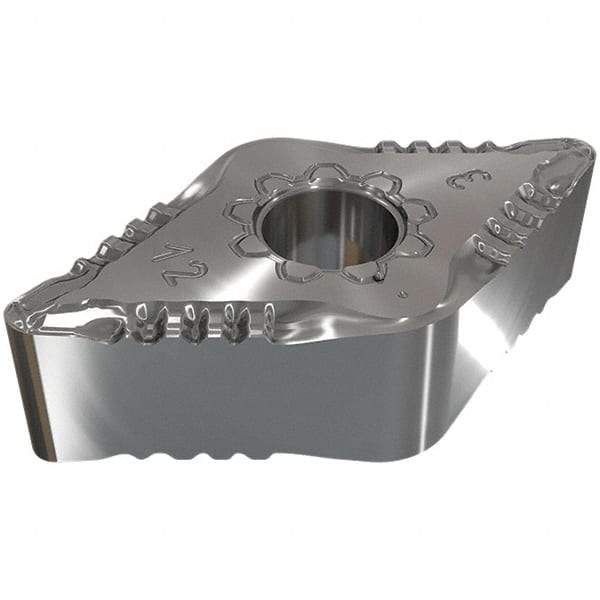

Iscar - DNMG443 F3P Grade IC807 Carbide Turning Insert - TiAlN/TiN Finish, 55° Diamond, 12.7mm Inscr Circle, 6.35mm Thick, 1.2mm Corner Radius
Item #: 55698096
Brand: Iscar
Model #: 5569332
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DNMG |
| Insert Size | 443 |
| Material | Carbide |
| Length (mm) | 15.50 |
| Length (Decimal Inch) | 0.6100 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.2500 |
| Thickness (mm) | 6.35 |
| Corner Radius (mm) | 1.20 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Manufacturer's Grade | IC807 |
| Coating | TiAlN/TiN |
| Chip Breaker | F3P |
| ISO Number | DNMG 443-F3P |
| Rake | Positive |
| Proprietary Coating Designation | SumoTec |
| Coating Process | PVD |
| Manufacturers Catalog Number | 5569332 |
| Primary Workpiece Material | H; K; M; P; S |
| Secondary Workpiece Material | None |
| Included Angle | 55 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (mm) | 4.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1570 |
| Multi Use Application | Turning |
| Shape | Diamond |
