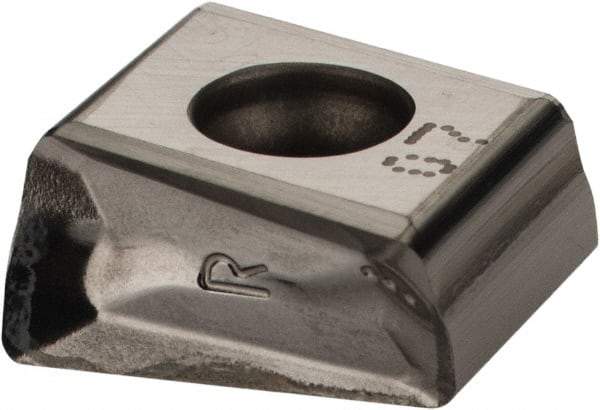

Iscar - T490 LNAR1306 P Grade IC07 Carbide Milling Insert - Uncoated, 0.512" Thick, 0.8mm Corner Radius
Item #: 55377253
Brand: Iscar
Model #: 5606389
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | T490 LNAR |
| Insert Size | 1306 |
| Material | Carbide |
| Manufacturer's Grade | IC07 |
| Coating | Uncoated |
| Width (Decimal Inch) | 0.2620 |
| Length (Decimal Inch) | 0.5437 |
| Thickness (Decimal Inch) | 0.5120 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Relief Angle | 0.000 |
| Rake | Positive |
| Included Angle | 90 |
| Shape | Rectangle |
| Insert Hand | Right Hand |
| Chipbreaker | P |
| Maximum Depth of Cut (mm) | 12.77 |
| Maximum Depth of Cut (Decimal Inch) | 0.5028 |
| ISO Number | T490 LNAR 1306PN-R-P |
