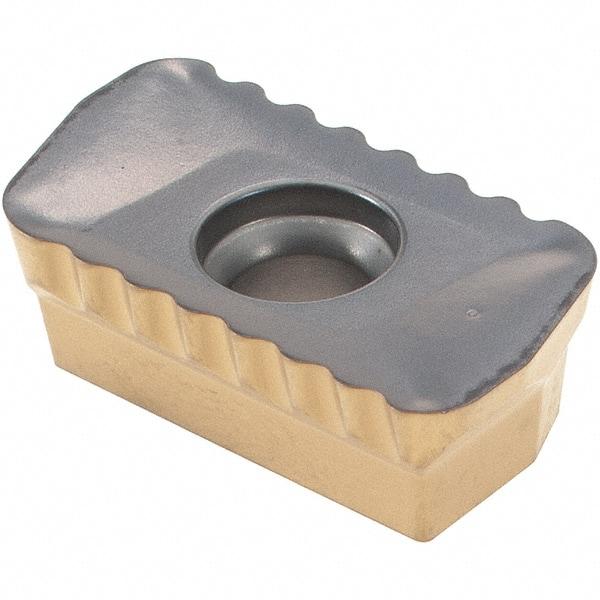

Iscar - P290 ACCT1806 FWR Grade IC830 Carbide Milling Insert - TiAlN/TiN Finish, 0.236" Thick, 3.81mm Corner Radius
Item #: 55220198
Brand: Iscar
Model #: 5668019
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | P290 ACCT |
| Insert Size | 1806 |
| Material | Carbide |
| Manufacturer's Grade | IC830 |
| Coating | TiAlN/TiN |
| Width (Decimal Inch) | 0.4210 |
| Length (Decimal Inch) | 0.7950 |
| Thickness (Decimal Inch) | 0.2360 |
| Corner Radius (Decimal Inch) | 0.1500 |
| Corner Radius (mm) | 3.81 |
| Coating Process | PVD |
| Shape | Parallelogram |
| Chipbreaker | FWR |
| Manufacturers Catalog Number | P290 ACKT 1806PDR-FWR |
