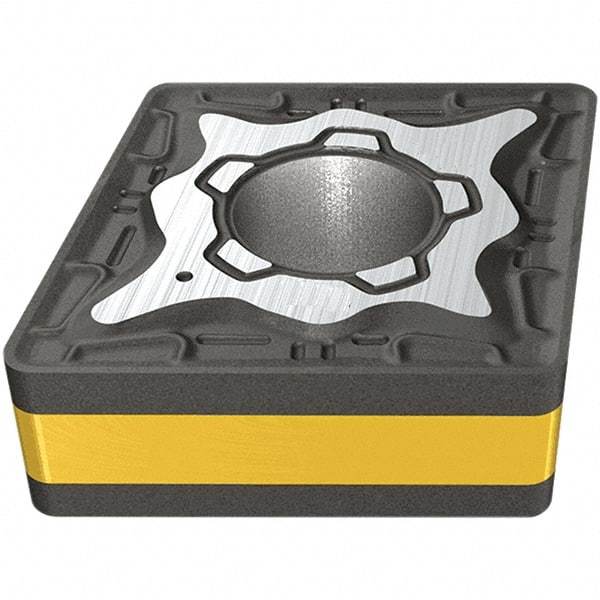

Iscar - CNMG433 M3P Grade IC8250 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 80° Diamond, 12.7mm Inscr Circle, 4.76mm Thick, 1.2mm Corner Radius
Item #: 55201073
Brand: Iscar
Model #: 5567464
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CNMG |
| Insert Size | 433 |
| Material | Carbide |
| Length (mm) | 12.90 |
| Length (Decimal Inch) | 0.5080 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1870 |
| Thickness (mm) | 4.76 |
| Corner Radius (mm) | 1.20 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Manufacturer's Grade | IC8250 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | M3P |
| ISO Number | CNMG 433-M3P |
| Rake | Positive |
| Coating Process | MTCVD |
| Manufacturers Catalog Number | 5567464 |
| Primary Workpiece Material | M; P |
| Secondary Workpiece Material | None |
| Included Angle | 80 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (mm) | 5.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.2170 |
| Shape | Diamond |
