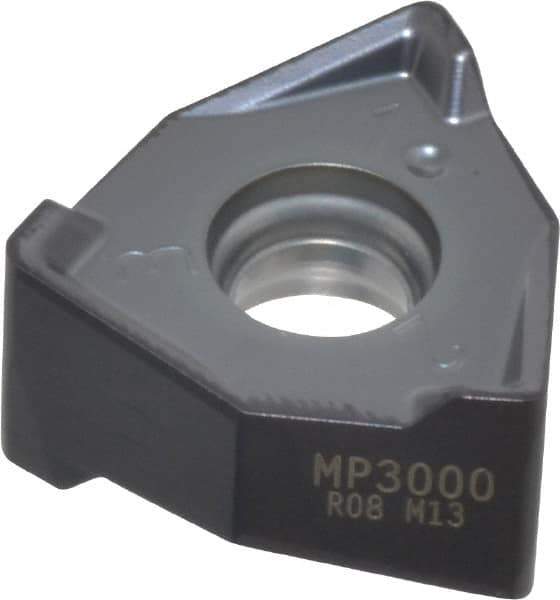

Seco - XNEX080608 M13 Grade MP3000 Carbide Milling Insert - TiAlN Finish, 1/4" Thick, 0.491" Inscribed Circle, 0.031" Corner Radius
Item #: 55189310
Brand: Seco
Model #: 43521
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XNEX |
| Insert Size | 080608 |
| Material | Carbide |
| Manufacturer's Grade | MP3000 |
| Coating | TiAlN |
| Width (Decimal Inch) | 0.4910 |
| Inscribed Circle (Decimal Inch) | 0.4910 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Relief Angle | 0.000 |
| Coating Process | PVD |
| Shape | Trigon |
| Insert Hand | Right Hand |
| Chipbreaker | M13 |
| Maximum Depth of Cut (Decimal Inch) | 0.2950 |
| ISO Number | XNEX080608TR-M13 |
