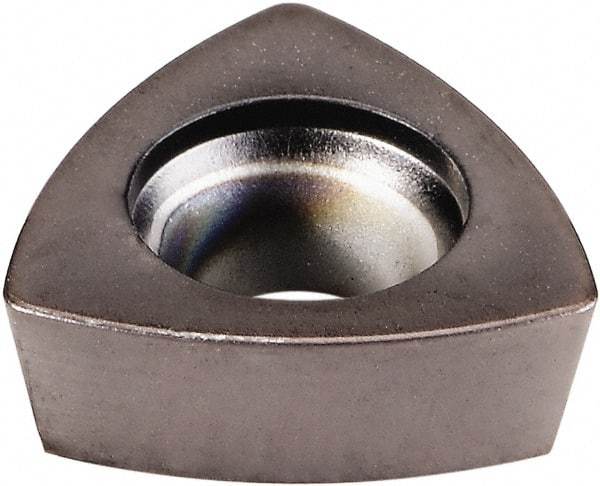

Kennametal - WPGX030204 Grade KC510M Carbide Milling Insert - TiAlN Finish, 3/32" Thick, 5.5mm Inscribed Circle, 10mm Corner Radius
Item #: 55164347
Brand: Kennametal
Model #: 3877727
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WPGX |
| Insert Size | 030204 |
| Material | Carbide |
| Manufacturer's Grade | KC510M |
| Coating | TiAlN |
| Length (Decimal Inch) | 0.2604 |
| Inscribed Circle (mm) | 5.50 |
| Inscribed Circle (Decimal Inch) | 0.2165 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (Decimal Inch) | 0.3937 |
| Corner Radius (mm) | 10.00 |
| Hole Diameter (mm) | 2.50 |
| Hole Diameter (Decimal Inch) | 0.0984 |
| Relief Angle | 12.000 |
| Coating Process | PVD |
| Included Angle | 80 |
| Shape | Trigon |
| Insert Hand | Neutral |
| ISO Number | WPGX030204LN080 |
