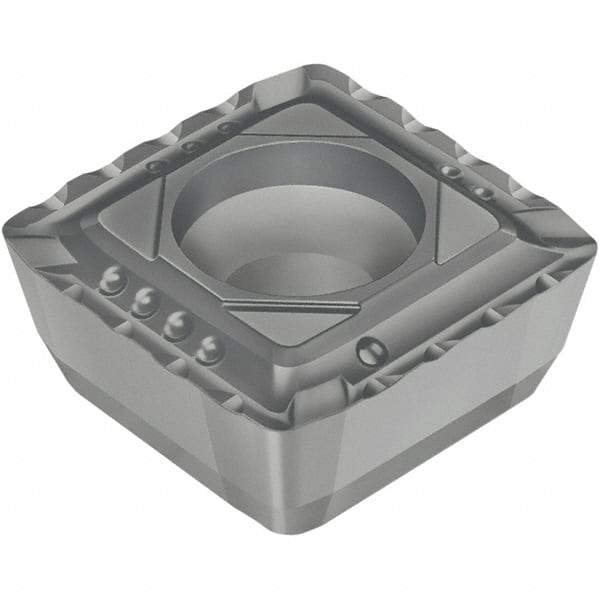

Walter - P4840C4R E67 Grade WXP40 Carbide Indexable Drill Insert - TiCN Finish, Square, 8.41mm Inscribed Circle
Item #: 55061097
Brand: Walter
Model #: 6154409
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium carbonitride (TiCN) is harder and more wear resistant than TiN. It is commonly used on stainless steel, cast iron and aluminum alloys.
| Product Specifications | |
|---|---|
| Insert Style | P4840C |
| Insert Size | 4R |
| Material | Carbide |
| Material Grade | P40/M30/S30 |
| Manufacturer's Grade | WXP40 |
| Inscribed Circle (mm) | 8.41 |
| Inscribed Circle (Decimal Inch) | 0.3310 |
| Thickness (mm) | 3.35 |
| Thickness (Decimal Inch) | 0.1320 |
| Corner Radius (mm) | 0.48 |
| Corner Radius (Decimal Inch) | 0.0190 |
| Shape | Square |
| Coating | TiCN |
| Coating Process | PVD |
| Cutting Direction | Right Hand |
| Chipbreaker | E67 |
