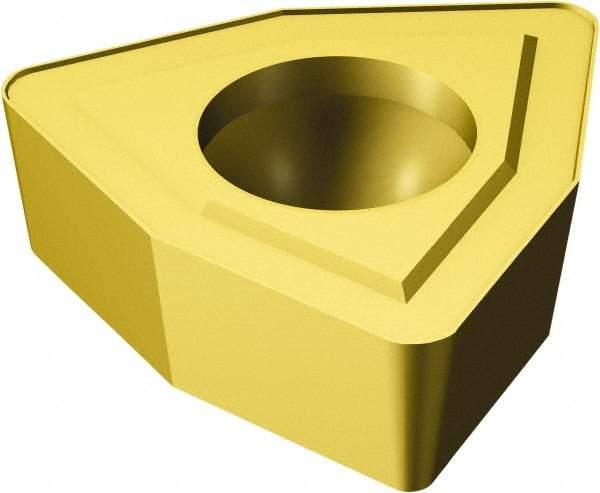

Sandvik Coromant - WCMX030208 53 235 Grade Carbide Indexable Insert Drill - TiCN/TiN Coated, Trigon, 0.2252" Inscr Circle, 0.0937" Thick, 0.0315" Cnr Rad, 7° Relief Angle
Item #: 54954730
Brand: Sandvik Coromant
Model #: 5756104
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiCN/TiN is a multi-layered coating designed to increase tool life. It is commonly used at high cutting speeds for smoothing and finishing of the workpiece.
| Product Specifications | |
|---|---|
| Insert Style | WCMX |
| Insert Size | 030208 |
| Material | Carbide |
| Manufacturer's Grade | 235 |
| Inscribed Circle (mm) | 5.72 |
| Inscribed Circle (Decimal Inch) | 0.2252 |
| Thickness (mm) | 2.38 |
| Thickness (Decimal Inch) | 0.0937 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Shape | Trigon |
| Length (mm) | 3.91 |
| Length (Decimal Inch) | 0.1539 |
| Hole Diameter (mm) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Relief Angle | 7 |
| Coating | TiCN/TiN |
| Coating Process | CVD |
| Cutting Direction | Right Hand |
| Chipbreaker | 53 |
