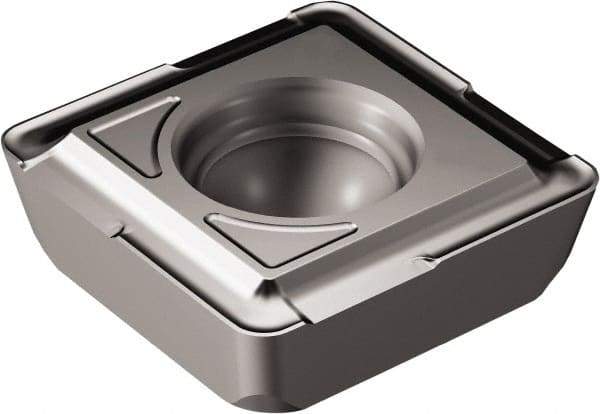

Sandvik Coromant - 880050308 GT 4324 Grade Carbide Indexable Insert Drill - TiCN/Al2O3 Coated, Square, 0.3504" Inscr Circle, 0.1181" Thick, 0.0315" Cnr Rad
Item #: 54954656
Brand: Sandvik Coromant
Model #: 6626834
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 880 |
| Insert Size | 050308 |
| Material | Carbide |
| Manufacturer's Grade | 4324 |
| Inscribed Circle (mm) | 8.90 |
| Inscribed Circle (Decimal Inch) | 0.3504 |
| Thickness (mm) | 3.00 |
| Thickness (Decimal Inch) | 0.1181 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Shape | Square |
| Hole Diameter (mm) | 3.20 |
| Hole Diameter (Decimal Inch) | 0.1260 |
| Coating | TiCN/Al2O3 |
| Coating Process | CVD |
| Cutting Direction | Right Hand |
| Chipbreaker | GT |
