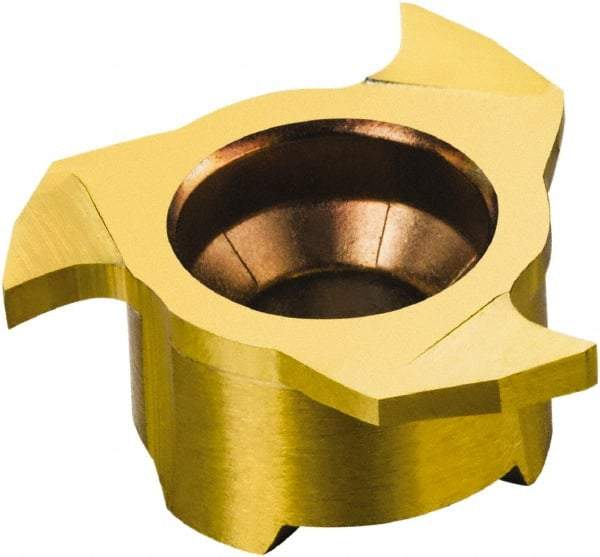

Sandvik Coromant - 327-GMM GMM Grade 1025 Carbide Groove Milling Tip Insert - TiAlN/TiN Finish, 6 Flutes, 27.7mm Cutting Diam, 6.5mm Depth of Cut, 6.25mm Extension, 0.0079" Cnr Rad
Item #: 54945423
Brand: Sandvik Coromant
Model #: 5758666
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiAlN/TiN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
| Product Specifications | |
|---|---|
| Series | CoroMill 327 |
| Milling Tip Style | 327-GMM |
| Milling Tip Type | Groove Milling |
| Material | Carbide |
| Cutting Diameter (mm) | 27.70 |
| Cutting Diameter (Decimal Inch) | 1.0910 |
| Manufacturer's Grade | 1025 |
| Depth of Cut (mm) | 6.50 |
| Depth of Cut (Decimal Inch) | 0.2560 |
| Number of Flutes | 6 |
| Coating | TiAlN/TiN |
| Milling Tip Full Description | Groove Milling |
| Corner Radius (Decimal Inch) | 0.0079 |
| Coating Process | PVD |
| Chipbreaker | GMM |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Extension From Holder (mm) | 6.25 |
| Extension From Holder (Decimal Inch) | 0.2460 |
| Style | 327-GMM |
| Manufacturers Catalog Number | 5758666 |
