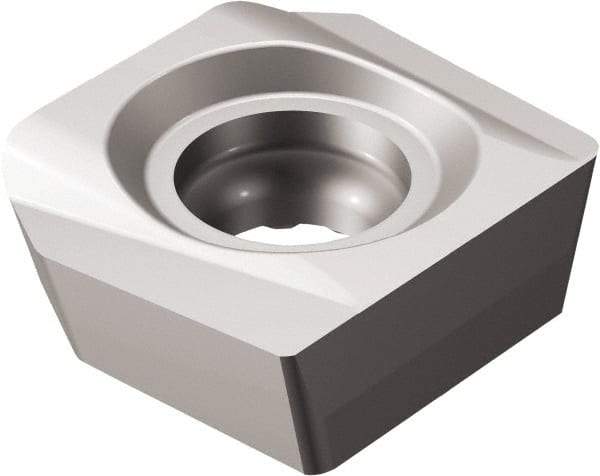

Sandvik Coromant - R590110504 NW Grade H10 Carbide Milling Insert - Uncoated, 5mm Thick, 0.4mm Corner Radius
Item #: 54945399
Brand: Sandvik Coromant
Model #: 5747601
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | R590 |
| Insert Size | 110504 |
| Material | Carbide |
| Manufacturer's Grade | H10 |
| Coating | Uncoated |
| Width (mm) | 11.00 |
| Width (Decimal Inch) | 0.4331 |
| Thickness (mm) | 5.00 |
| Thickness (Decimal Inch) | 0.1969 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Corner Radius (mm) | 0.40 |
| Hole Diameter (mm) | 4.60 |
| Hole Diameter (Decimal Inch) | 0.1811 |
| Rake Angle | 20 |
| Rake | Positive |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | NW |
| Maximum Depth of Cut (mm) | 2.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Cutting Edge Style | Sharp |
| Manufacturers Catalog Number | 5747601 |
| ISO Number | R590-110504H-NW H10 |
