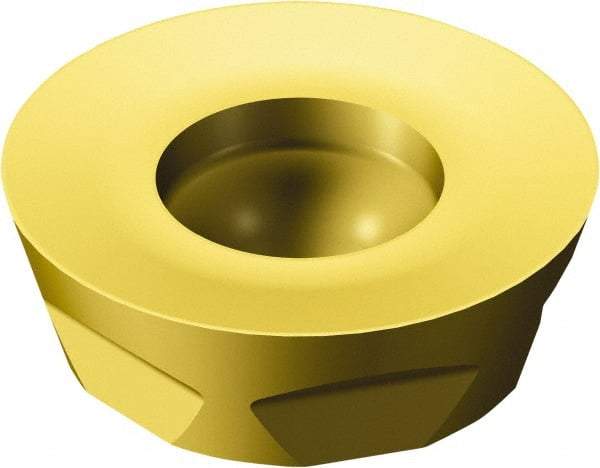

Sandvik Coromant - R3002570 MM Grade 2040 Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 7mm Thick, 1" Inscribed Circle, 1/2" Corner Radius
Item #: 54944533
Brand: Sandvik Coromant
Model #: 5744657
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | R300 |
| Insert Size | 2570 |
| Material | Carbide |
| Manufacturer's Grade | 2040 |
| Coating | TiCN/Al2O3/TiN |
| Inscribed Circle (Inch) | 1 |
| Inscribed Circle (Decimal Inch) | 1.0000 |
| Thickness (mm) | 7.00 |
| Thickness (Decimal Inch) | 0.2756 |
| Corner Radius (Decimal Inch) | 0.5000 |
| Hole Diameter (mm) | 7.60 |
| Hole Diameter (Decimal Inch) | 0.2992 |
| Relief Angle | 15.000 |
| Coating Process | CVD |
| Shape | Round |
| Insert Hand | Right Hand |
| Chipbreaker | MM |
| Maximum Depth of Cut (Decimal Inch) | 0.1465 |
| Cutting Edge Style | ER Treated |
| Manufacturers Catalog Number | 5744657 |
| ISO Number | R300-2570M-MM 2040 |
