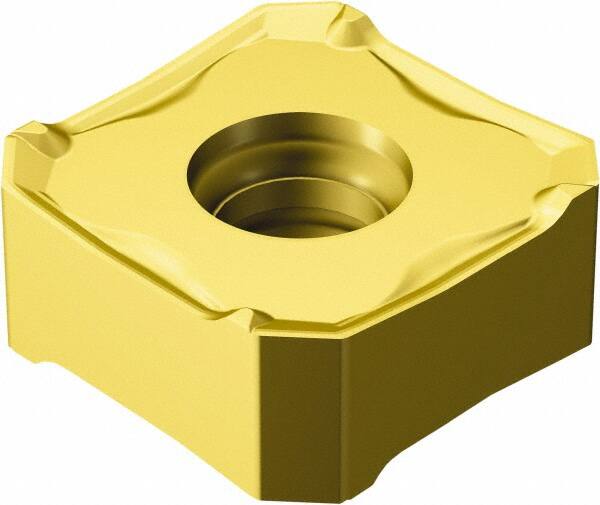

Sandvik Coromant - 345R1305MKM K20W Carbide Milling Insert
Item #: 54944350
Brand: Sandvik Coromant
Model #: 5758927
Product Specifications
| Insert Style | 345R |
| Insert Size | 1305 |
| Material | Carbide |
| Manufacturer's Grade | K20W |
| Coating | TiCN/Al2O3/TiN |
| Inscribed Circle (mm) | 13.00 |
| Inscribed Circle (Decimal Inch) | 0.5118 |
| Thickness (mm) | 5.56 |
| Thickness (Decimal Inch) | 0.2189 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Hole Diameter (mm) | 4.80 |
| Hole Diameter (Decimal Inch) | 0.1890 |
| Relief Angle | 0.000 |
| Rake Angle | 24 |
| Rake | Positive |
| Coating Process | MTCVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Right Hand |
| Chipbreaker | KM |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Cutting Edge Style | Double Negative Land |
| Manufacturers Catalog Number | 5758927 |
| ISO Number | 345R-1305M-KM K20W |
