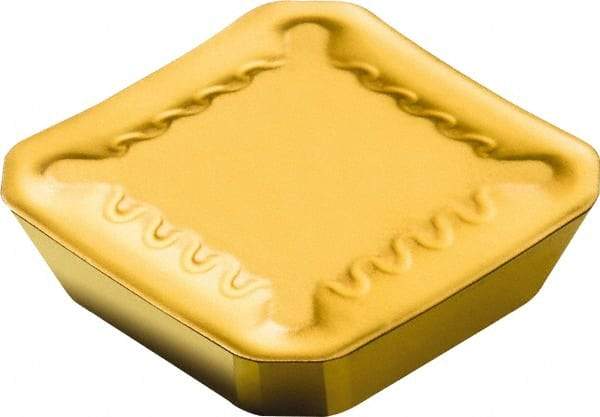

Sandvik Coromant - SEER1203 WL Grade 4030 Carbide Milling Insert - Al2O3/TiN/TiCN Finish, 3.18mm Thick, 12.7mm Inscribed Circle, 1.5mm Corner Radius
Item #: 54943949
Brand: Sandvik Coromant
Model #: 5749612
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SEER |
| Insert Size | 1203 |
| Material | Carbide |
| Manufacturer's Grade | 4030 |
| Coating | Al2O3/TiN/TiCN |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (mm) | 3.18 |
| Thickness (Decimal Inch) | 0.1252 |
| Corner Radius (Decimal Inch) | 0.0591 |
| Corner Radius (mm) | 1.50 |
| Relief Angle | 20.000 |
| Coating Process | CVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Neutral |
| Chipbreaker | WL |
| Maximum Depth of Cut (mm) | 6.40 |
| Maximum Depth of Cut (Decimal Inch) | 0.2520 |
| Cutting Edge Style | ER Treated |
| Manufacturers Catalog Number | 5749612 |
| ISO Number | SEER 12 03 AZ-WL 4030 |
