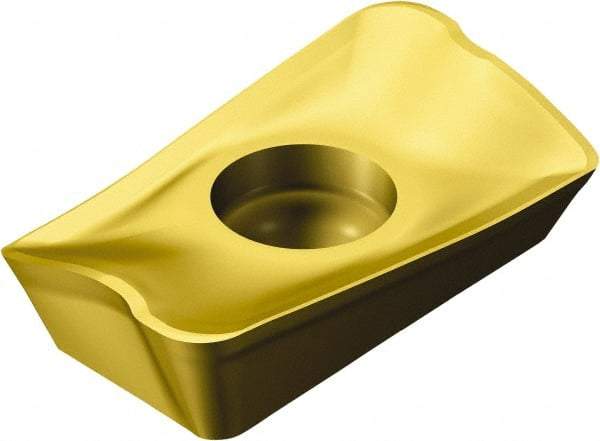

Sandvik Coromant - R390170408 ML Grade S40T Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 4.76mm Thick, 0.8mm Corner Radius
Item #: 54943253
Brand: Sandvik Coromant
Model #: 5853509
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | R390 |
| Insert Size | 170408 |
| Material | Carbide |
| Manufacturer's Grade | S40T |
| Coating | TiCN/Al2O3/TiN |
| Width (mm) | 17.00 |
| Width (Decimal Inch) | 0.6693 |
| Thickness (mm) | 4.76 |
| Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Hole Diameter (mm) | 4.10 |
| Hole Diameter (Decimal Inch) | 0.1614 |
| Relief Angle | 19.000 |
| Coating Process | CVD |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | ML |
| Maximum Depth of Cut (mm) | 15.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.6181 |
| Cutting Edge Style | Sharp |
| Manufacturers Catalog Number | 5853509 |
| ISO Number | R390-17 04 08E-ML S40T |
