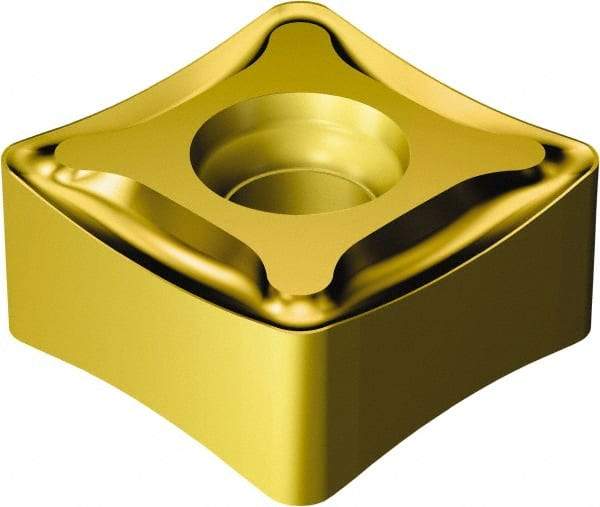

Sandvik Coromant - N331.1D136520 PM Grade 1020 Carbide Milling Insert - TiAlN Finish, 6.55mm Thick, 13mm Inscribed Circle, 2mm Corner Radius
Item #: 54942776
Brand: Sandvik Coromant
Model #: 5782726
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N331.1D |
| Insert Size | 136520 |
| Material | Carbide |
| Manufacturer's Grade | 1020 |
| Coating | TiAlN |
| Inscribed Circle (mm) | 13.00 |
| Inscribed Circle (Decimal Inch) | 0.5118 |
| Thickness (mm) | 6.55 |
| Thickness (Decimal Inch) | 0.2579 |
| Corner Radius (Decimal Inch) | 0.0787 |
| Corner Radius (mm) | 2.00 |
| Hole Diameter (mm) | 4.35 |
| Hole Diameter (Decimal Inch) | 0.1713 |
| Relief Angle | 0.000 |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Neutral |
| Chipbreaker | PM |
| Maximum Depth of Cut (mm) | 10.10 |
| Maximum Depth of Cut (Decimal Inch) | 0.3976 |
| Cutting Edge Style | ER Treated |
| Manufacturers Catalog Number | 5782726 |
| ISO Number | N331.1D-136520E-PM 1020 |
