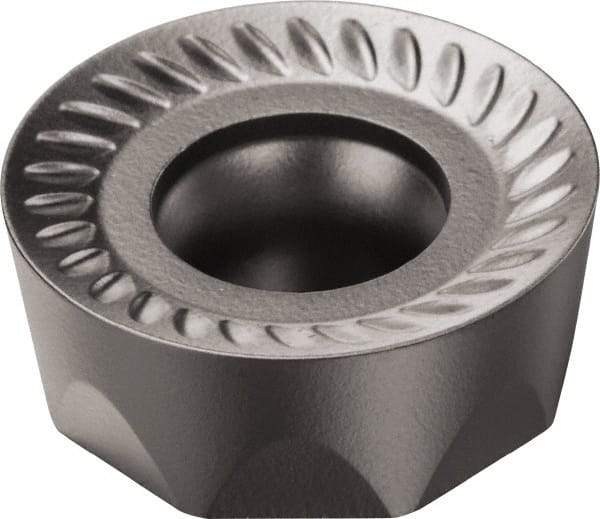

Sandvik Coromant - RCKT10T3M0 WM Grade 530 Carbide Milling Insert - Uncoated, 3.97mm Thick, 10mm Inscribed Circle, 5mm Corner Radius
Item #: 54941786
Brand: Sandvik Coromant
Model #: 5740446
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCKT |
| Insert Size | 10T3M0 |
| Material | Carbide |
| Manufacturer's Grade | 530 |
| Coating | Uncoated |
| Inscribed Circle (mm) | 10.00 |
| Inscribed Circle (Decimal Inch) | 0.3937 |
| Thickness (mm) | 3.97 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Decimal Inch) | 0.1969 |
| Corner Radius (mm) | 5.00 |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Relief Angle | 7.000 |
| Shape | Round |
| Insert Hand | Neutral |
| Chipbreaker | WM |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Cutting Edge Style | ER Treated |
| Manufacturers Catalog Number | 5740446 |
| ISO Number | RCKT 10 T3 M0-WM 530 |
