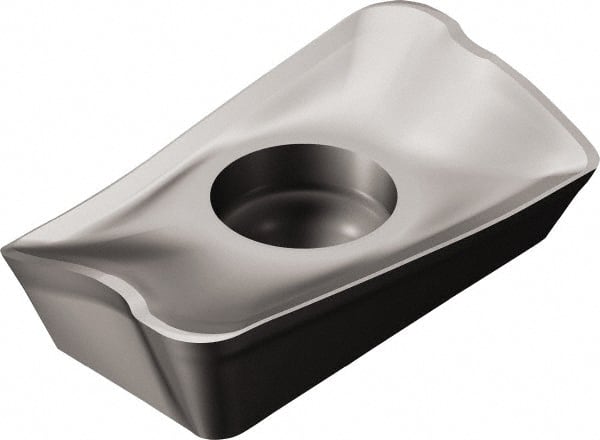

Sandvik Coromant - R390170424EPM S30T Carbide Milling Insert
Item #: 54941604
Brand: Sandvik Coromant
Model #: 5853500
Product Specifications
| Insert Style | R390 |
| Insert Size | 170424 |
| Material | Carbide |
| Manufacturer's Grade | S30T |
| Coating | TiAlN2 |
| Width (mm) | 17.00 |
| Width (Decimal Inch) | 0.6693 |
| Thickness (mm) | 4.76 |
| Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0945 |
| Corner Radius (mm) | 2.40 |
| Hole Diameter (mm) | 4.10 |
| Hole Diameter (Decimal Inch) | 0.1614 |
| Relief Angle | 19.000 |
| Coating Process | PVD |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | PM |
| Maximum Depth of Cut (mm) | 15.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.6181 |
| Cutting Edge Style | ER Treated |
| Manufacturers Catalog Number | 5853500 |
| ISO Number | R390-17 04 24E-PM S30T |
