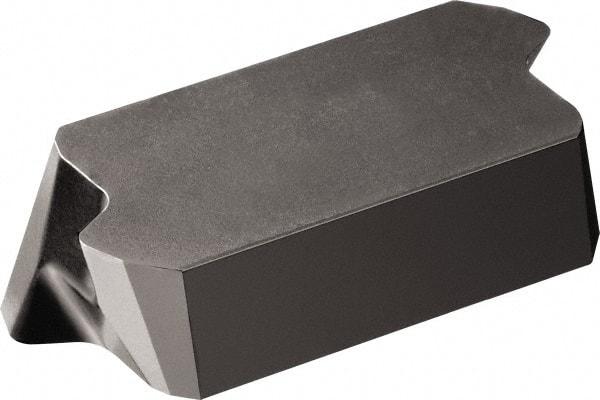

Sandvik Coromant - LNCX1806 Grade SMA Carbide Milling Insert - Uncoated, 6.4mm Thick
Item #: 54941471
Brand: Sandvik Coromant
Model #: 5735049
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LNCX |
| Insert Size | 1806 |
| Material | Carbide |
| Manufacturer's Grade | SMA |
| Coating | Uncoated |
| Width (mm) | 10.00 |
| Width (Decimal Inch) | 0.3937 |
| Thickness (mm) | 6.40 |
| Thickness (Decimal Inch) | 0.2520 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Corner Radius (mm) | 0.00 |
| Relief Angle | 0.000 |
| Rake Angle | 0 |
| Rake | Neutral |
| Included Angle | 90 |
| Shape | Rectangle |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (mm) | 12.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| Cutting Edge Style | ER Treated |
| Manufacturers Catalog Number | 5735049 |
| ISO Number | LNCX 18 06 AZ R-11 SMA |
