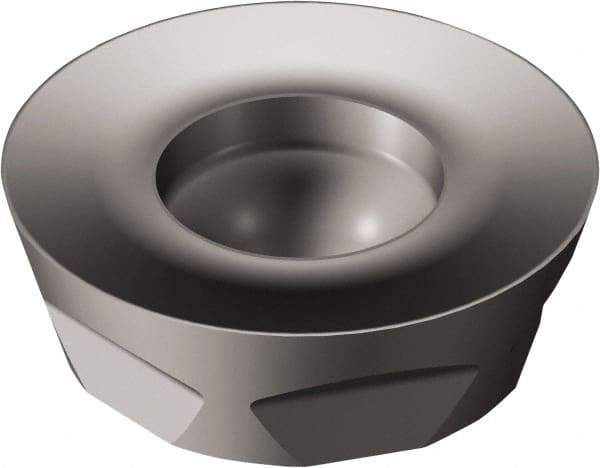

Sandvik Coromant - R3001240 PM Grade 1010 Carbide Milling Insert - TiAlN2 Finish, 4mm Thick, 12mm Inscribed Circle, 6mm Corner Radius
Item #: 54941141
Brand: Sandvik Coromant
Model #: 5744527
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | R300 |
| Insert Size | 1240 |
| Material | Carbide |
| Manufacturer's Grade | 1010 |
| Coating | TiAlN2 |
| Inscribed Circle (mm) | 12.00 |
| Inscribed Circle (Decimal Inch) | 0.4724 |
| Thickness (mm) | 4.00 |
| Thickness (Decimal Inch) | 0.1575 |
| Corner Radius (Decimal Inch) | 0.2362 |
| Corner Radius (mm) | 6.00 |
| Hole Diameter (mm) | 4.10 |
| Hole Diameter (Decimal Inch) | 0.1614 |
| Relief Angle | 15.000 |
| Coating Process | PVD |
| Shape | Round |
| Insert Hand | Right Hand |
| Chipbreaker | PM |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Cutting Edge Style | ER Treated |
| Manufacturers Catalog Number | 5744527 |
| ISO Number | R300-1240E-PM 1010 |
