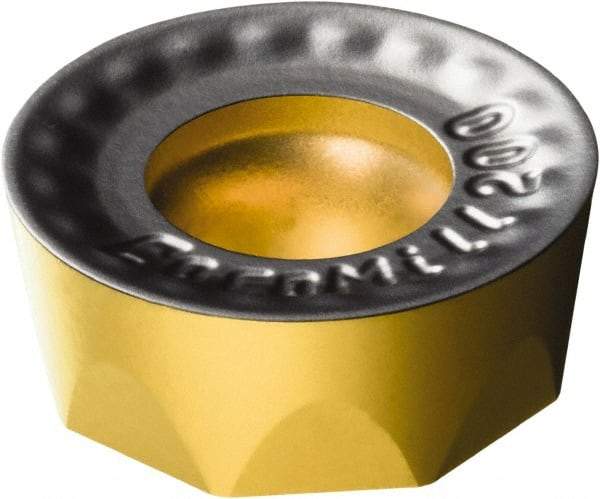

Sandvik Coromant - RCKT130400 KH Grade 3330 Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 3/16" Thick, 1/2" Inscribed Circle, 1/4" Corner Radius
Item #: 54941109
Brand: Sandvik Coromant
Model #: 6428106
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCKT |
| Insert Size | 130400 |
| Material | Carbide |
| Manufacturer's Grade | 3330 |
| Coating | TiCN/Al2O3/TiN |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Decimal Inch) | 0.2500 |
| Hole Diameter (mm) | 4.00 |
| Hole Diameter (Decimal Inch) | 0.1575 |
| Relief Angle | 7.000 |
| Coating Process | CVD |
| Shape | Round |
| Insert Hand | Neutral |
| Chipbreaker | KH |
| Maximum Depth of Cut (Decimal Inch) | 0.0732 |
| Cutting Edge Style | ER Treated |
| Manufacturers Catalog Number | 6428106 |
| ISO Number | RCKT 13 04 00-KH 3330 |
