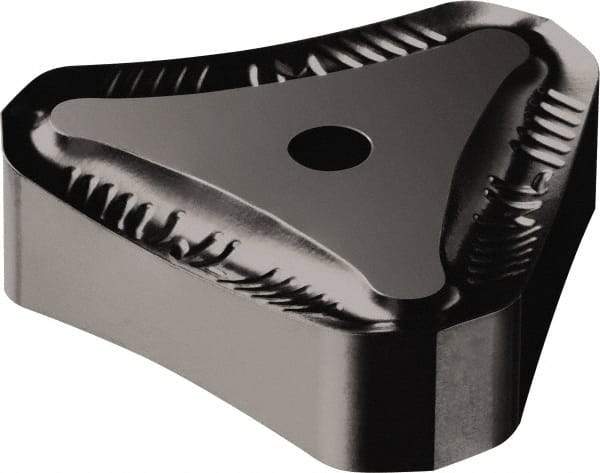

Sandvik Coromant - TNEF1204 WL Grade 3040 Carbide Milling Insert - TiCN/Al2O3 Finish, 4.76mm Thick, 12.7mm Inscribed Circle, 2mm Corner Radius
Item #: 54940812
Brand: Sandvik Coromant
Model #: 5753286
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TNEF |
| Insert Size | 1204 |
| Material | Carbide |
| Manufacturer's Grade | 3040 |
| Coating | TiCN/Al2O3 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (mm) | 4.76 |
| Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0787 |
| Corner Radius (mm) | 2.00 |
| Relief Angle | 0.000 |
| Rake Angle | 18 |
| Rake | Positive |
| Coating Process | MTCVD |
| Included Angle | 60 |
| Shape | Triangle |
| Insert Hand | Neutral |
| Chipbreaker | WL |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Cutting Edge Style | ER Treated |
| Manufacturers Catalog Number | 5753286 |
| ISO Number | TNEF 12 04 AN-WL 3040 |
