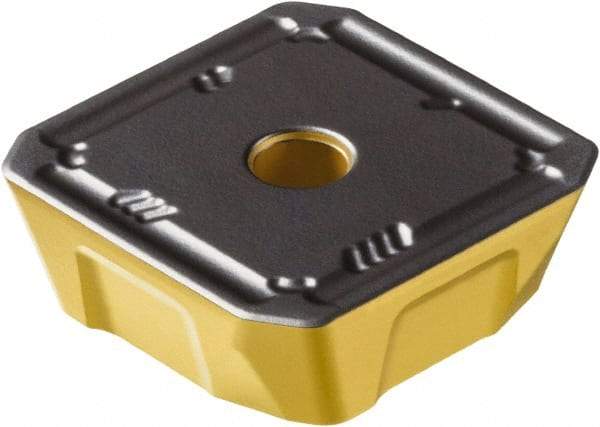

Sandvik Coromant - 360R1906 KH Grade 3330 Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 6.35mm Thick, 19mm Inscribed Circle, 1.6mm Corner Radius
Item #: 54939830
Brand: Sandvik Coromant
Model #: 6428174
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 360R |
| Insert Size | 1906 |
| Material | Carbide |
| Manufacturer's Grade | 3330 |
| Coating | TiCN/Al2O3/TiN |
| Inscribed Circle (mm) | 19.00 |
| Inscribed Circle (Decimal Inch) | 0.7480 |
| Thickness (mm) | 6.35 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Corner Radius (mm) | 1.60 |
| Hole Diameter (mm) | 3.80 |
| Hole Diameter (Decimal Inch) | 0.1496 |
| Rake Angle | 0 |
| Rake | Neutral |
| Coating Process | CVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Right Hand |
| Chipbreaker | KH |
| Maximum Depth of Cut (mm) | 13.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5118 |
| Cutting Edge Style | Negative Land/ER Treated |
| Manufacturers Catalog Number | 6428174 |
| ISO Number | 360R-19 06M-KH 3330 |
