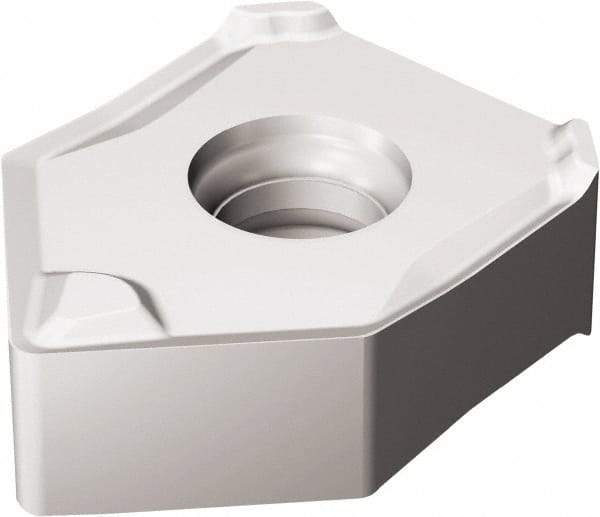

Sandvik Coromant - 345N1305 PW Grade 530 Carbide Milling Insert - Uncoated, 5.56mm Thick, 13mm Inscribed Circle, 1mm Corner Radius
Item #: 54939335
Brand: Sandvik Coromant
Model #: 5861281
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 345N |
| Insert Size | 1305 |
| Material | Carbide |
| Manufacturer's Grade | 530 |
| Coating | Uncoated |
| Inscribed Circle (mm) | 13.00 |
| Inscribed Circle (Decimal Inch) | 0.5118 |
| Thickness (mm) | 5.56 |
| Thickness (Decimal Inch) | 0.2189 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Corner Radius (mm) | 1.00 |
| Hole Diameter (mm) | 4.80 |
| Hole Diameter (Decimal Inch) | 0.1890 |
| Relief Angle | 0.000 |
| Rake Angle | 22 |
| Rake | Positive |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Neutral |
| Chipbreaker | PW |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Cutting Edge Style | Negative Land |
| Manufacturers Catalog Number | 5861281 |
| ISO Number | 345N-1305E-PW8 530 |
