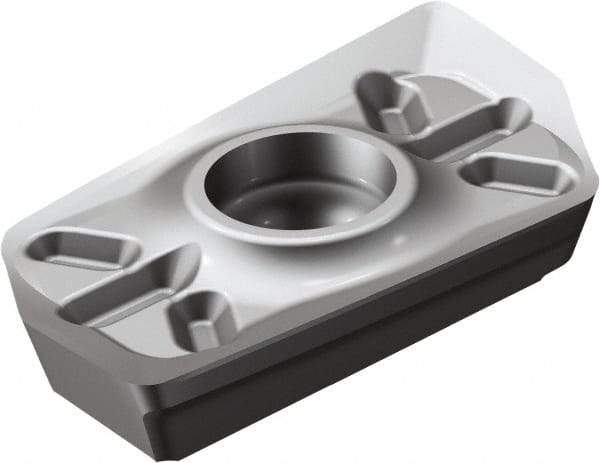

Sandvik Coromant - R790160440 NL Grade H13A Carbide Milling Insert - Uncoated, 4mm Thick, 4mm Corner Radius
Item #: 54938626
Brand: Sandvik Coromant
Model #: 5748573
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | R790 |
| Insert Size | 160440 |
| Material | Carbide |
| Manufacturer's Grade | H13A |
| Coating | Uncoated |
| Width (mm) | 16.00 |
| Width (Decimal Inch) | 0.6299 |
| Thickness (mm) | 4.00 |
| Thickness (Decimal Inch) | 0.1575 |
| Corner Radius (Decimal Inch) | 0.1575 |
| Corner Radius (mm) | 4.00 |
| Hole Diameter (mm) | 4.10 |
| Hole Diameter (Decimal Inch) | 0.1614 |
| Relief Angle | 20.000 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | NL |
| Maximum Depth of Cut (mm) | 15.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5906 |
| Cutting Edge Style | Sharp |
| Manufacturers Catalog Number | 5748573 |
| ISO Number | R790-160440PH-NL H13A |
