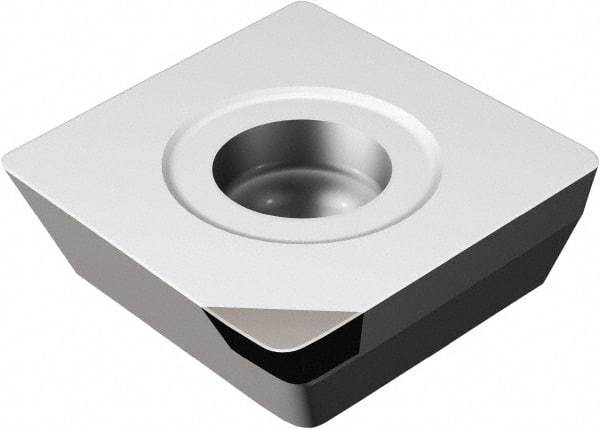

Sandvik Coromant - 490R140408 PO Grade CB50 Carbide Milling Insert - Uncoated, 4.76mm Thick, 13.8mm Inscribed Circle, 0.8mm Corner Radius
Item #: 54938105
Brand: Sandvik Coromant
Model #: 6264605
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 490R |
| Insert Size | 140408 |
| Material | Carbide |
| Manufacturer's Grade | CB50 |
| Coating | Uncoated |
| Width (mm) | 14.00 |
| Width (Decimal Inch) | 0.5512 |
| Inscribed Circle (mm) | 13.80 |
| Inscribed Circle (Decimal Inch) | 0.5433 |
| Thickness (mm) | 4.76 |
| Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Hole Diameter (mm) | 4.10 |
| Hole Diameter (Decimal Inch) | 0.1614 |
| Relief Angle | 16.000 |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Right Hand |
| Chipbreaker | PO |
| Maximum Depth of Cut (mm) | 2.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Cutting Edge Style | Negative Land/ER Treated |
| Manufacturers Catalog Number | 6264605 |
| ISO Number | 490R-140408E CB50 |
