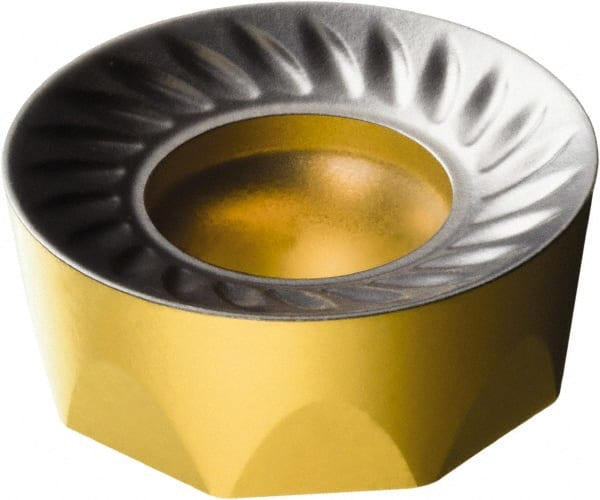

Sandvik Coromant - RCKT1204M0KM 3220 Carbide Milling Insert
Item #: 54937958
Brand: Sandvik Coromant
Model #: 5740491
Product Specifications
| Insert Style | RCKT |
| Insert Size | 1204M0 |
| Material | Carbide |
| Manufacturer's Grade | 3220 |
| Coating | TiCN/Al2O3/TiN |
| Inscribed Circle (mm) | 12.00 |
| Inscribed Circle (Decimal Inch) | 0.4724 |
| Thickness (mm) | 4.76 |
| Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.2362 |
| Corner Radius (mm) | 6.00 |
| Hole Diameter (mm) | 4.00 |
| Hole Diameter (Decimal Inch) | 0.1575 |
| Relief Angle | 7.000 |
| Coating Process | CVD |
| Shape | Round |
| Insert Hand | Neutral |
| Chipbreaker | KM |
| Maximum Depth of Cut (mm) | 1.76 |
| Maximum Depth of Cut (Decimal Inch) | 0.0693 |
| Cutting Edge Style | ER Treated |
| Manufacturers Catalog Number | 5740491 |
| ISO Number | RCKT 12 04 M0-KM 3220 |
