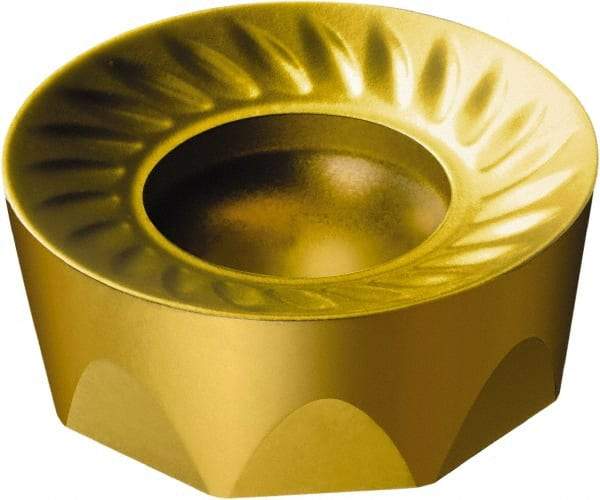

Sandvik Coromant - RCKT2006M0 PM Grade S40T Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 6.35mm Thick, 20mm Inscribed Circle, 10mm Corner Radius
Item #: 54937768
Brand: Sandvik Coromant
Model #: 5853556
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCKT |
| Insert Size | 2006M0 |
| Material | Carbide |
| Manufacturer's Grade | S40T |
| Coating | TiCN/Al2O3/TiN |
| Inscribed Circle (mm) | 20.00 |
| Inscribed Circle (Decimal Inch) | 0.7874 |
| Thickness (mm) | 6.35 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Decimal Inch) | 0.3937 |
| Corner Radius (mm) | 10.00 |
| Hole Diameter (mm) | 6.50 |
| Hole Diameter (Decimal Inch) | 0.2559 |
| Relief Angle | 7.000 |
| Coating Process | CVD |
| Shape | Round |
| Insert Hand | Neutral |
| Chipbreaker | PM |
| Maximum Depth of Cut (mm) | 2.93 |
| Maximum Depth of Cut (Decimal Inch) | 0.1154 |
| Cutting Edge Style | ER Treated |
| Manufacturers Catalog Number | 5853556 |
| ISO Number | RCKT 20 06 M0-PM S40T |
